Features of the AR10 Automatic Reverse Loop Controller
Automatically controls polarity of DCC reverse loops
Provides short circuit protection for loop
Ready to run without any programming
Trip current adjustable 1 to 10 Amps
Easy hookup using screw terminals, no soldering
Solid state design provides silent, reliable operation
Status indication LED
Additional output for remote LED
Automatic or manual reset after short circuit shutdown
Adjustable short circuit response time
Dimensions: 2.6 x 0.350 x .079 inches – 66 x 8.9 x 2.0 mm
Direct plug in to Atlas GP39-2, Intermountain SD40-2
plus other plug-and-play N Scale locos.
Features of this decoder
Silent Running, torque compensated motor drive
Torque Compensation for ultra smooth low speed performance
Motor rating .75 Amp continuous, 0.75 Amp stall
All four function outputs have lighting effects generators
Select from 15 different lighting effects
Full support for LED lighting
Decoder programming lock mechanism
Serial to USB cable for Power Pro
This 6 foot USB cable has a Windows 10 certified driver that will automatically install when you plug it in. The cable is known to work with Windows 10 and Windows 7. It should also be compatible with Apple and Linux computers.
Attention International Customers: Due to COVID-19 You will need to select an international shipping method that includes priority mail, tracking, and insurance. It is not safe for us to ship to you at the present moment without package tracking and insurance.
Note: NCE will not be held responsible for delayed or lost packages.

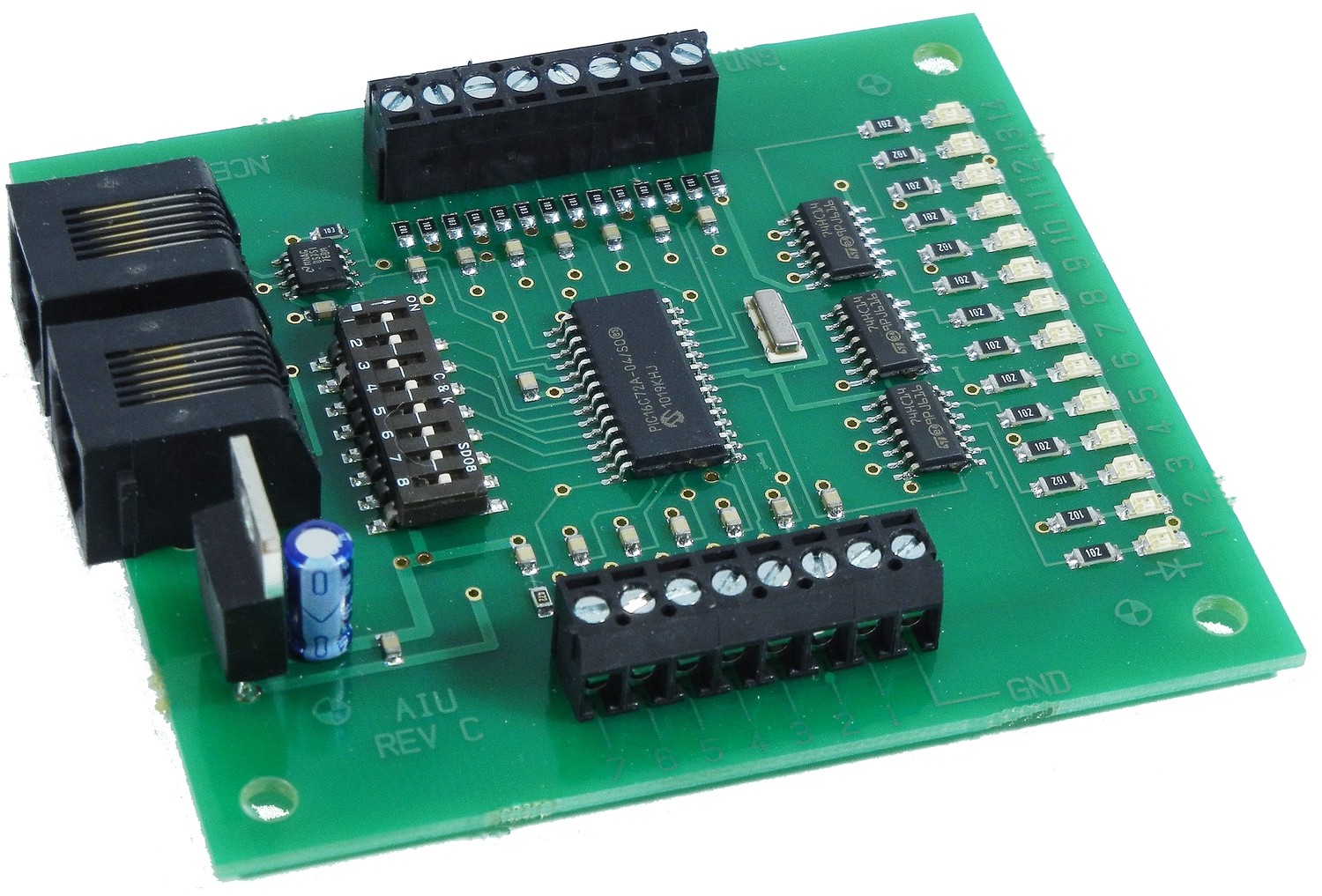

The Auxiliary Input Unit (AIU) provides a means of connecting external devices such as switch contacts, Block Detectors (BD20), or other sensors to the NCE Cab Bus or Command Station. These external devices can be anything that supplies an electrical connection between the input pins (1-14) and the pins marked "GND" Connects to the NCE cab bus using RJ12 6 wire jack.
